PFE-50D Automatic PVC Plastic Book Notebook Binding Wire Extruder Machine Plastic Wire Extrusion Machine with 2 Outlets

PFE-50D Automatic PVC Plastic Book Notebook Binding Wire Extruder Machine Plastic Wire Extrusion Machine with 2 Outlets

Designed for Simplicity: We believe powerful technology should be easy to use. The PFE-50D features convenient debugging and an intuitive operation process. Non-trained operators can quickly grasp the skills needed to run the machine, significantly reducing training time and costs while minimizing operational errors

Integrated System Capabilities: For a fully optimized production line, the PFE-50D can be seamlessly equipped with a diameter gauge for real time monitoring, a dryer to ensure raw material quality, and a suction machine for efficient material handling. Create a streamlined, automated workflow tailored to your specific requirements

PFE-50D Double Head Rewinding PVC Plastic Filament Extrusion Machine:

PFE-50D Double Head Rewinding PVC Plastic Filament Extrusion Machine Specifications:

PVC Plastic Wire Diameter :1.3mm-3.5mm

Screw Rod Diameter:50mm

Working Speed Diameter 40mm:30-40kg

The No.of Heating elements:9pcs

L/D Ratio of screw:0.1:25

Material of Extrude Barrel&Screw:38CRMOAIA

Machine Dimension:6.2*0.91*1.55m

Power Supply:380V/3ph/50Hz

Total Power: extruding parties 7.5kw, draft gear:0.75kw

Winder:1.2kw Heating parties:8kw(each kilogram materials cost 0.9°c electricity)

PFE-50D Double Head Rewinding PVC Plastic Filament Extrusion Machine Advantages:

1:Working Speed up to 40kg/hour

2:Convenient Debugging

3:Adjusting extruding and winding speed to change wire diameter

4:Perfect roundness of extruded wire and stable wire diameter to promote forming production rate and ensure quality of plastic spiral

5:Non-trained operators can grasp the skill in a short period

PFE-50D Double Head Rewinding PVC Plastic Filament Extrusion Machine Main electric appliance:

Transducer:Delta

Motor:Pure copper wire Motor

Water tank:Heat and Cold water tank both are 304 stainless steel

Extruding machine mold head :S136 Stainless steel

Heating Control :Solid state relay

I-beam take-up reels may be supplied as required (quantity subject to customer specifications)

Package Size:Water tank :5.5*0.55*0.7m, Winder:1.3*1.2*1.45m

Wire drawer:1.75*0.9*1.33m

Gross Weight:1400kg

Extra Option choice at extra cost:1:50kg Mixing ingredients machine

2:Small Size waste materials recycling shredder

About US

Our factory mainly produce two party of after printing products:

1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine. Mylar Tab Lamination Machine,Glue Perfect Binding Machine

2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger,Plastic Binding Comb

Our company advantages: we can supply after printing all kinds of full binding system:

1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.

2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time

3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.

Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it. after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve.Warmly welcome you call us

PS: We have many different kinds of machines, if you have any requrement please kindly email at tina@nanbobinding.com or wechat or whatsapp 008613431348359

automatic PVC plastic wire extruder machine

plastic spiral coil forming machine with 2 outlets

notebook binding wire extrusion machine

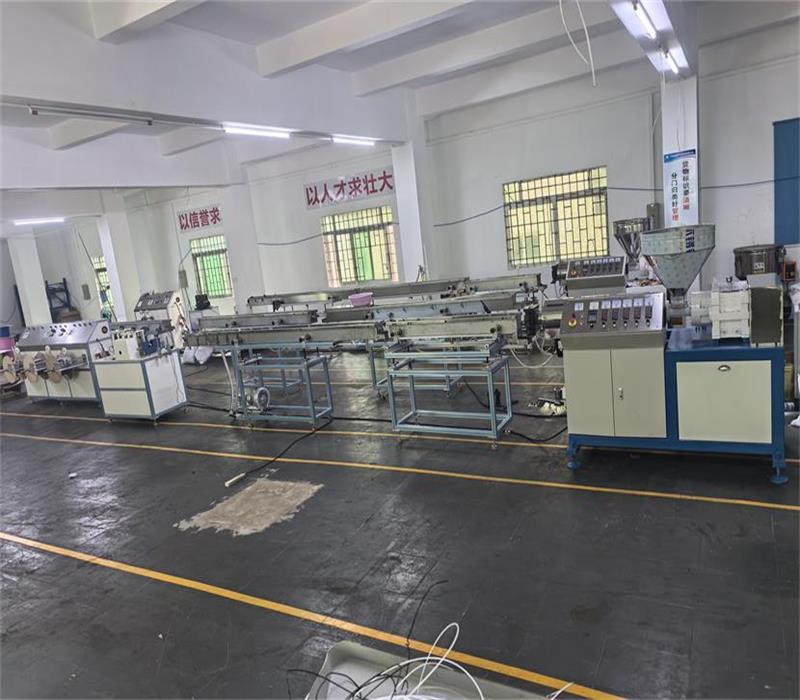

PFE-50D Automatic PVC Plastic Book Notebook Binding Wire Extruder Machine Plastic Wire Extrusion Machine with 2 Outlets Images
